Alloy C22 SORF Flanges, C22 Hastelloy Long Weld Neck Flanges, Ready Stock Of Nickel Alloy C22 Flanges, Manufacturer of ASTM B564 Hastelloy C22 Lap Joint Flanges, Hastelloy Alloy C22 Threaded Flanges Supplier

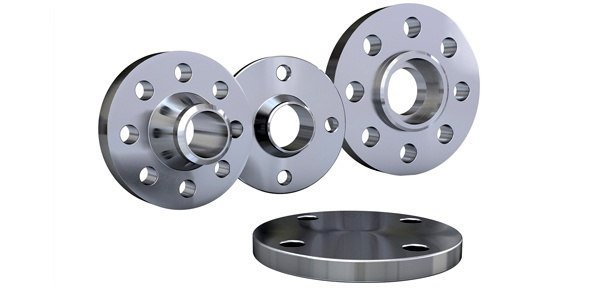

Hariom Steel is a supplier of Hastelloy Alloy C22 Flanges, which is more resistant to intergranular corrosion. Hastelloy UNS N06022 Slip On Flanges is a columbium-containing stabilised austenitic chromium nickel steel that eliminates carbide precipitation and, as a result, inter-granular corrosion. It is frequently utilised as a stabilised alternative when columbium is employed as the stabilising agent. Because of its low tantalum and cobalt content, it should be evaluated for nuclear applications.Collector rings, annealing box covers, aviation exhaust heaps, jet engine parts, tubing, fasteners, flexible metal bellows and hose, expansion joints, and other applications call for it. These are iron-based alloys with at least 10.5 percent chromium content.

Hastelloy C22 Flanges Specifications

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production Technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 F316 Stainless Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Hastelloy C22 Flanges Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

C22 Hastelloy Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Weight Chart Of Hastelloy C22 Flanges

Pipe Normal Diam.		O.D. Flange	Thk. Of Flange Min	Diam. of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diam. of Bolt Circle	Diam. of Bolt Holes	Number of Bolts	Diam. of Bolts (inch)	KG	LB
inch	dn	O	C	X	G	Y	T	BC	BH	BN	BD
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214
