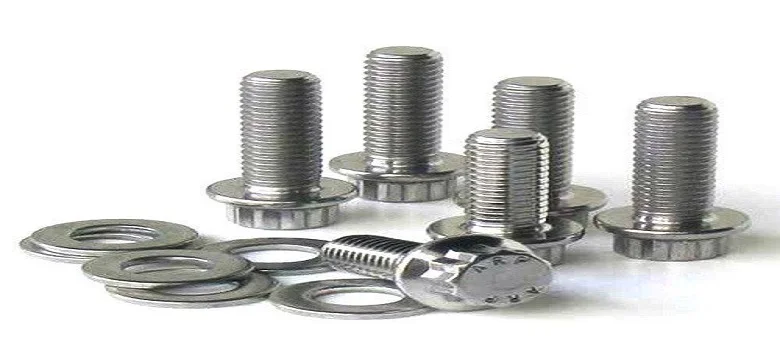

Monel K500 Bolts, Manufacturer of ASTM F468 Alloy K500 Fasteners, Monel® Alloy 400 Socket Set Screw, Ready Stock Of Monel Alloy 400 Anchor Fasteners, Monel 400 Threaded Rod Supplier

Monel UNS N04400 Nuts is used in a variety of applications, including chemical processing, pollution control, calorifiers, oil and gas recovery, hot vessels for food, water, and seawater, acid production, pickling tank heaters, tanks, and equipment, nuclear fuel reprocessing, radioactive waste handling, marine exhaust systems, and so on. Monel WNR 2.4360 Bolts is resistant to general corrosion, pitting and crevice corrosion, intergranular corrosion, and stress corrosion cracking in reducing and oxidising environments. They are especially helpful in sulfuric acid, phosphoric acid, sulfur-containing flue fumes, sour gas and hydrocarbon wells, and marine water.

Monel 400/K500 Fasteners Specifications

SpecificationASTM F468, ASME SB 468
StandardDIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards
SizeM2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160
Length3 mm to 200 mm
ThreadsMETRIC, BSW, BSF, UNC, UNF or as required
Standard

ANSI – American National Standards Institute

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards

In Form ofHex, Square, Round, Threading as per Gauge Etc.
Head drivePhillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate:Manufacturer Test Certificate as per EN 10204 / 3.1
Surface finishingZinc (yellow, white, blue, black), black oxide,
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Production processM2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element
Surface Coating
  • Teflon Coated Fasteners
  • Phosphate Coated Fasteners
  • Zinc Coated Fasteners
  • Ptfe Coated
  • Xylon Coated Fasteners
  • Cadmium Coated Fasteners
  • Hot Dipped Galvanizing Coated Fasteners

All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet

PackingIN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request

Monel 400/K500 Fasteners Chemical Composition

GradeCMnSiSCuFeNi
Monel 4000.30 max2.00 max0.50 max0.024 max28.00 – 34.002.50 max63.00 min
Monel K5000.25 max1.5 max0.5 max0.010 max27.00 – 33.000.5 – 263.00 min

400/K500 Monel Fasteners Mechanical Properties

ElementDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
Monel 4008.8 g/cm31350 °C (2460 °F)Psi – 80,000 , MPa – 550Psi – 35,000 , MPa – 24040 %
Monel K5008.44 g/cm31350 °C (2460 °F)Psi – 160000 , MPa – 1100Psi – 115000 , MPa – 79020 %

Monel 400/K500 Fasteners Standard

Hexagon Bolt / Set ScrewsStud BoltHexagon NutsSocket Cap screws
DIN 931BS4882DIN 934DIN 912
DIN 933DIN 976BS 1768DIN 6912
BS 1768BS 1769DIN 7984
UNI 5731BS 1083ANSI B18.3
UNI 5739BS 3692ISO 4762
ISO 4014ISO 4032UNI 5931
ISO 4017ISO 4033BS 2470
BS 1769ANSI B18.2.2BS 4168
BS 3692
ANSI B18.2.1
Socket & Slotted Set ScrewsSocket & Slotted Countersunk ScrewsStudsWashers
DIN 913DIN 963DIN 938DIN 125
DIN 914DIN 7991DIN 939DIN 9021
DIN 915BS 4168DIN 2510BS 4320
DIN 916BS 1981BS 4439BS 3410
DIN 551BS 483BS 2693
DIN 553BS 2470Spring Washers
DIN 438DIN 127
BS 4168BS 4464
BS 1802

Weight Chart Of Monel 400/K500 Fasteners

AS PER IS 1363/67 MM THREADS
FOR 100 NOS APPROXIMATE WEIGHT IN KGS
LENGTHFasteners DIAMETER
M 6M 5M 8M 12M 10M 14M 18M 22M 16M 20
16 mm0.7430.4481.590 3.211
20 mm0.8120.5981.7114.8923.411
25 mm0.8970.6601.8715.2523.6608.170
30 mm1.0100.7372.0705.5743.9129.690  10.70718.657
35 mm1.1200.8042.2715.9744.22310.00016.026 11.41619.608
40 mm1.2300.8812.4706.4104.53310.28816.667 12.10720.747
45 mm1.3400.9582.6716.8594.84010.50417.241 12.82121.739
50 mm1.4501.0302.8707.2995.15511.26117.85728.40913.62422.727
55 mm1.560 3.0717.7405.46411.62818.86830.12014.40923.810
60 mm1.670 3.2708.1835.77412.25520.00032.05115.24425.126
65 mm1.781 3.4728.6216.08312.62621.00834.01416.02626.455
70 mm1.890 3.6719.0586.39412.98722.12435.46116.83527.778
75 mm2.000 3.8739.5066.70213.22823.25639.06317.60629.070
80 mm2.111 4.07210.0007.01313.88924.51040.00018.24830.303
90 mm  4.47210.9177.63414.92526.04241.66719.84133.113
100 mm  4.87311.8208.25116.34027.77846.29621.45935.714
110 mm   12.7238.88117.73031.25047.17023.04138.168
120 mm   13.6249.50618.79732.89550.00024.63140.984
130 mm   14.53510.10120.00034.72252.63226.31643.478
140 mm   15.43210.70720.83335.46155.55627.93346.296
150 mm   16.34011.31222.22237.59458.82429.41248.544
160 mm   17.24111.90524.27240.98461.72831.05650.505
170 mm   18.11612.500  64.93532.68053.191
180 mm   19.01113.12326.882 67.56834.24755.556
190 mm   19.92013.736  70.42335.97158.140
200 mm   20.83314.32729.58649.02073.52937.59460.976
220 mm   22.62415.528  79.36540.65065.789
240 mm   24.51016.722  84.74643.86071.429
250 mm   25.38117.301  87.71945.45574.627
260 mm   26.31617.921  90.90947.17076.923
280 mm   28.09019.157  98.03950.50581.967
300 mm   29.94020.325  104.16753.76387.719
320 mm   31.646    56.81892.593
340 mm   33.557    60.24198.039
360 mm   35.211    63.291104.167
380 mm   37.037    66.667108.696
400 mm   39.063    69.444113.636

Applications:

Industry
Refineries90%
Oil and Gas Industry96%
Power Generation80%
Pharmaceutical Equipment85%
Pulp & Paper Industry88%
