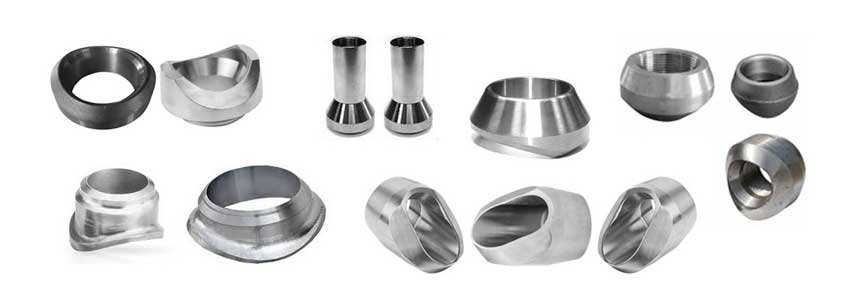

STAINLESS STEEL 304 FLEXIBLE OUTLET, SS 304 OUTLET, 304 SS THREADING OUTLET, READY STOCK OF SS 304 THREADOLET, MANUFACTURER OF ASTM A182 WP304 FLEXOLET SUPPLIER

Hariom Steel is a recognised trader and manufacturer of SS 304 Outlets, which has characteristics such as a strong construction, simple installation, and a flawless finish, among others. We provide our customers with a variety of Stainless Steel UNS S30400 Outlets at competitive market rates. Because of the positive suction head, it provides specified performance as well as high total efficiency, whereas horizontal pumps suffer from losses in the suction line, foot valve, and so on. We provide an excellent variety of steel, which our clients praise for their unexpected features, thanks to our extensive manufacturing expertise and knowledge. As a result, it has characteristics such as rust protection, high tensile strength, ease of installation, and more.

Stainless Steel 304 Outlets Specifications

SS 304 Outlet Fittings StandardASTM A182 / ASME SA182
Stainless Steel 304 / Outlet Fittings DimensionsASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
304 SS Outlet Fittings Size1/8″-4″ (DN6-DN100)
304 SS Outlet Fittings Connect TypeWelded, threaded, BW, SW
304 SS Outlet Pipe DiameterDN15 ~ DN40
SS 304 Outlet Fittings2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Stainless Steel 304 Outlet ProcessFree forging, plate cutting, forged
Origin of 304 / 304 Stainless Steel OutletIndian Origin, European Origin, Japanese Origin
304 Outlet Fittings PackingPacked in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
Test CertificatesMill Test Certificates
304 Outlet Fittings Chemical Reports
EN 10204 3.1
Mechanical Reports,
Destructive Test Report
Non Destructive Test Reports
304L Outlet Fittings PMI Test Reports
304 SS Outlet Fittings Visual Inspection Reports
NABL Approved Lab Reports
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175

SS 304 Outlets Equivalent Grades

STANDARDUNSWERKSTOFF NR.AFNORENJISBSGOST
SS 304S304001.4301Z7CN18‐09X5CrNi18-10SUS 304304S3108Х18Н10

Stainless Steel 304 Outlets Chemical Composition

GradeCMnSiPSCrMoNiN
SS 304min.-----18.0-8.0-
max.0.082.00.750.0450.03020.010.50.10

304 Stainless Steel Outlets Mechanical Properties

Grade

Tensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) maxBrinell (HB) max
SS 3045152054092201

Stainless Steel 304 Outlets Standards

ASTM A182/A182MWrought Austenitic SS 304 Outlet Piping Fittings
ASME SA182 – ASTM A182Standard Specification for Wrought Austenitic Stainless Steel 304 Outlet Piping Fittings
MSS SP-97Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends
BS3799 –Specification for Outlet Fittings for the petroleum industry
ASTM A182 – ASME SA182Standard Specification for Wrought Austenitic SS Outlet Fittings
ASME StandardASME/ANSI B16.11, MSS-SP-97
DIN StandardDIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN StandardEN10253-2, EN10253-1
ASME B16.11Threaded, Welded, SW, BW

Stainless Steel 304 Outlets Weldolet Dimensions

NPSABCD
11.1/16
26.99		2
50.80		1.7/16
36.51		1.1/32
26.19
1/23/4
19.05		1.3/8
34.93		15/16
23.81		5/8
15.88
3/47/8
22.23		1.5/8
41.28		1.3/16
30.16		13/16
20.64
1¼1¼
31.75		2.3/8
60.3		1.3/4
44.45		1.3/8
34.93
1½1.5/16
33.34		2.7/8
73		2
50.80		1.5/8
41.28
21½
38.10		3½
88.90		2.9/16
65.09		2.1/16
52.39
2½1.5/8
41.28		4.1/16
103.19		3
76.20		2.7/16
61.91
31.3/4
44.45		4.13/16
122.24		3.11/16
93.66		3.1/16
77.79
3½2
50.80		5.3/8
136.53		3.7/8
98.43		3.9/16
90.49
42
50.80		6
152.40		4.3/4
120.65		4
101.60
52¼
57.15		7.1/8
180.98		5.9/16
141.29		5.1/16
128.59
62.3/8
60.3		8½
215.90		6.11/16
169.86		6.1/16
153.99
82.3/4
69.85		10.3/8
263.53		8.11/16
220.66		7.15/16
201.61
103.1/16
77.79		12.9/16
319.09		10.13/16
274.64		10
254.00
123.3/8
85.73		14.7/8
377.83		12.13/16
325.44		12
304.80
143½
88.90		16.1/8
409.58		14.1/16
357.19		13¼
336.55
163.11/16
93.66		18¼
463.55		16.1/16
407.99		15¼
387.35
184.1/16
103.19		20.3/4
527.05		18.5/8
473.08		17¼
438.15
204.5/8
117.48		23.1/16
585.79		20.1/16
509.59		19¼
488.95
245.3/8
136.53		27.7/8
708.03		25.1/8
638.18		23¼
590.55
NPSABCD

Stainless Steel 304 Outlets Sockolet Dimensions

Nominal Pipe SizeSocket (C)
Minimum		Face to Crotch (L)
3000 Lbs6000 Lbs
1″132229
1/8″1010–
1/4″1010–
3/8″1013–
1/2″101624
3/4″131625
1 1/4″132230
1 1/2″132432
2″162437
2 1/2″1625–
3″1630–
4″1930–

Stainless Steel 304 Outlets Threadolet Dimensions

Nominal Pipe SizeFace to Crotch (L)
3000 Lbs6000 Lbs
1″3340
1/8″19–
1/4″19–
3/8″21–
1/2″2532
3/4″2737
1 1/4″3341
1 1/2″3543
2″3852
2 1/2″46–
3″51–
4″57–

Applications:

Industry
Refineries90%
Oil and Gas Industry96%
Power Generation80%
Pharmaceutical Equipment85%
Pulp & Paper Industry88%
