DSS S31803 ELBOW, READY STOCK OF DUPLEX STEEL S32205 PIPE FITTINGS, MANUFACTURER OF ASTM A403 DSS S31803 PIPE ELBOW, DUPLEX GRADE S32205 LR ELBOW, DUPLEX 2205 BUTTWELD FITTINGS SUPPLIER

This product's resistance to sulfuric and phosphoric acids has made Duplex Steel S31803 Elbow Pipe Fittings famous in the chemical processing business, as well as flexible enough to operate in nuclear fuel reprocessing and pickling equipment. In the temperature range of 1100 degrees Fahrenheit (593 degrees Celsius) to 1800 degrees Fahrenheit (982 degrees Celsius), this steel has better creep and stress-rupture properties. Copper and molybdenum additions improve this steel's resilience to general stress corrosion as well as particular assaults such as crevice corrosion. They should use heavy duty machining tools and gear to reduce chatter or work-hardening of the metal prior to cutting.

Duplex Steel S31803 / S32205 Pipe Fittings Specifications

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM A403 / ASME SA403
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Types	Seamless / ERW / Welded / Fabricated
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.

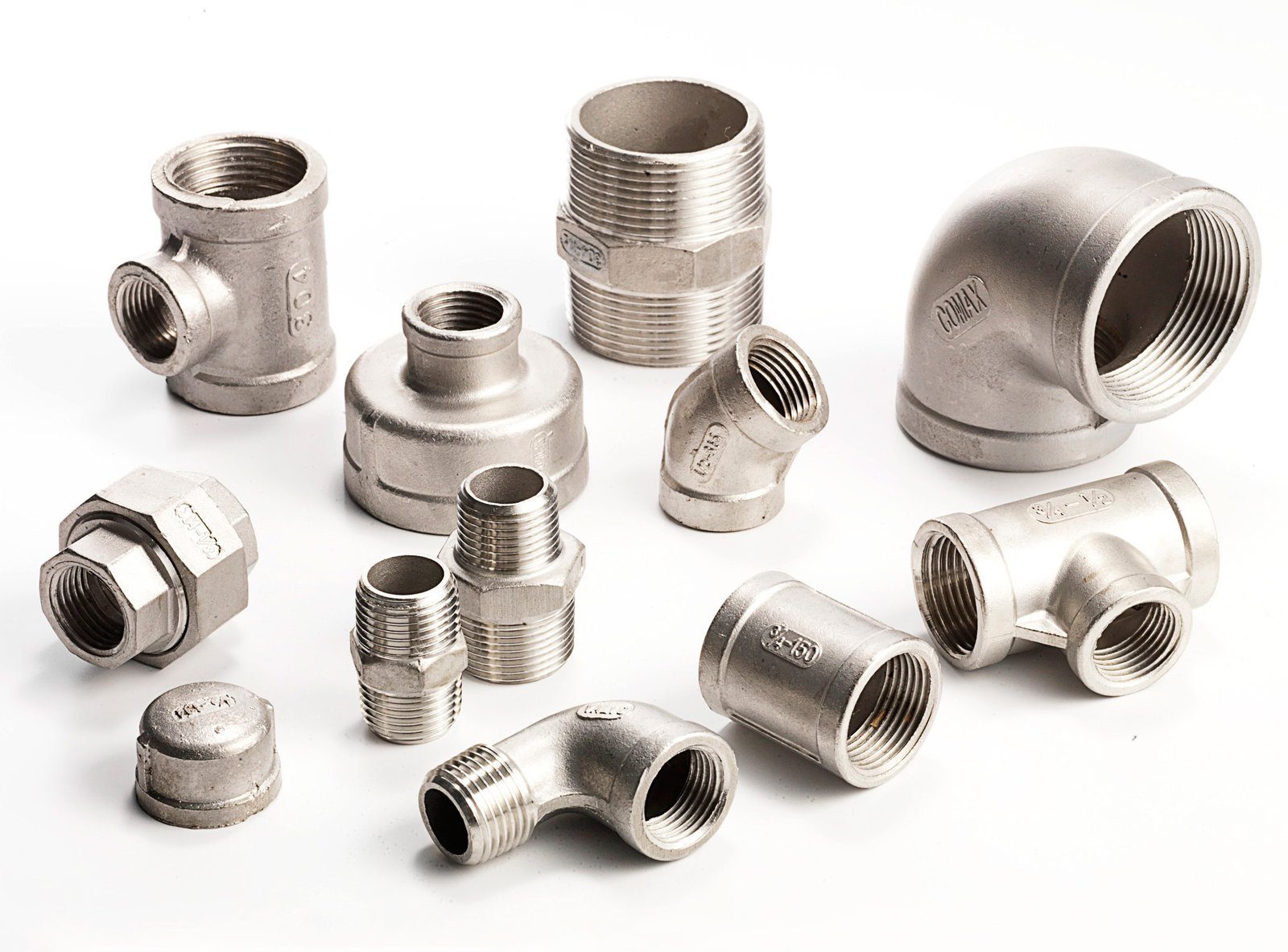

Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc

Duplex Steel S31803 / S32205 Butt weld Fittings Chemical Composition

C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	22.0 – 23.0	3.0 – 3.5	4.50 – 6.50	0.14 – 0.20	63.72 min
0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	21.0 – 23.0	2.50 - 3.50	4.50 – 6.50	0.8 – 0.20	63.54 min

S31803 / S32205 Duplex Steel Pipe Fittings Mechanical Properties

Grades	Density (g/cm 3)	Density (lb/in 3)	Melting Point (°C)	Melting Point (°F)
S31803	7.805	0.285	1420 – 1465	2588 – 2669
S32205	7.805	0.285	1420 – 1465	2588 – 2669

Duplex Steel UNS S31803 / S32205 Pipe Fittings Thickness Chart

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31
