Anchor Bolt
Foundation bolts are essential fastening components designed to attach structures or objects to concrete. They are crucial in various applications, including construction, machinery installation, and building anchorage. Foundation bolts provide robust support and stability, ensuring that the connected elements remain securely in place.
Available in different types and sizes, foundation bolts can meet diverse load requirements and environmental conditions. Their design ensures efficient load transfer, enhancing the overall structural integrity.
- Designed for securing structures to concrete
- Essential for construction and machinery installation
- Available in multiple materials and sizes
- Provides strong and reliable connections
- Variety of types to suit specific applications
Foundation Bolt Specification Table
| Specification | Description |
|---|---|
| ASTM F1554 | Specification for foundation bolts, steel, 36, 55, and 105-ksi yield strength |
| AISC 360 | Specification for structural steel buildings, including foundation bolt requirements |
| ACI 318 | Building code requirements for structural concrete, detailing foundation bolt usage |
| ISO 898-1 | Mechanical properties of fasteners made of carbon steel and alloy steel |
Foundation Bolt Specifications
- Material Grades: Carbon Steel, Alloy Steel, Stainless Steel
- Size Range: From 1/4" to 6" in diameter, with various lengths available
- Thread Types: Available in coarse and fine threads
- Strength Ratings: Designed for specific load capacities, with detailed ratings provided
- Standards and Specifications: ASTM F1554, AISC 360, ACI 318
- Finish Options: Includes options such as galvanized, black oxide, and plain steel

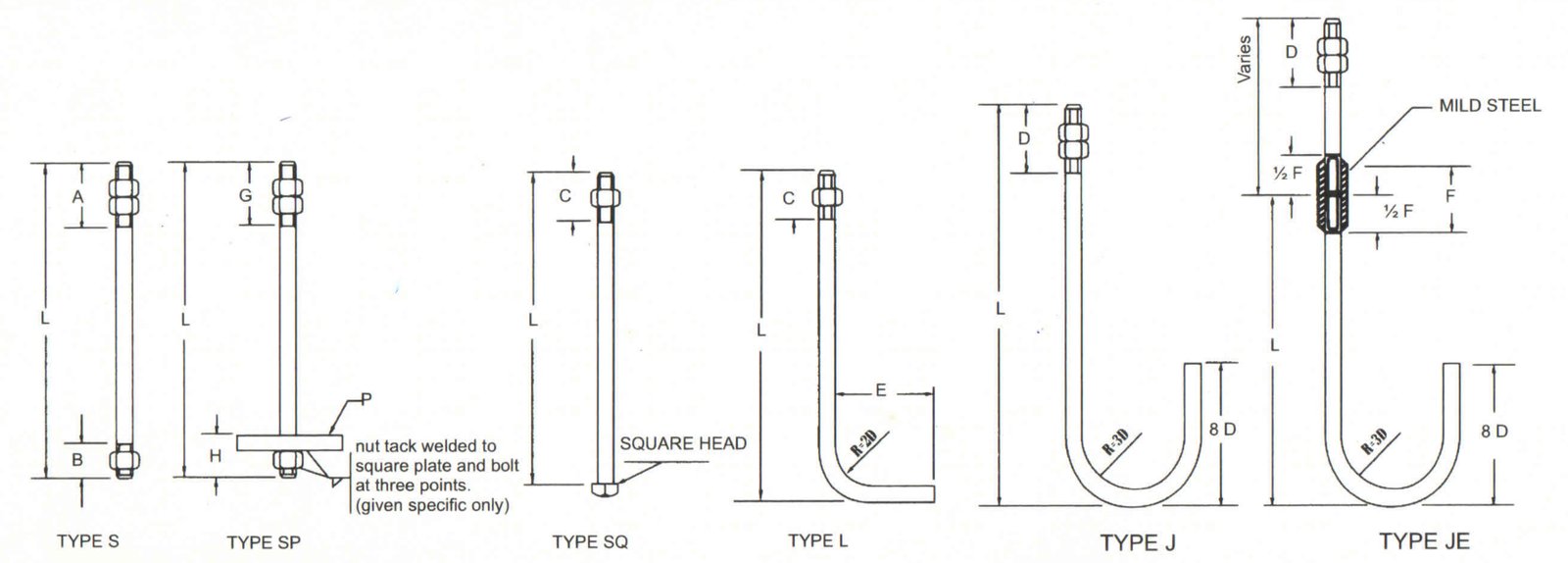

Foundation Bolts Dimensions Chart:
| Anchor Thread Diameter | Dimensions in mm | Cutting Length mm | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | P | TYPE | |||||||||||
| Square Plate | S | SP | SQ | L | J | JE | ||||||||||||||
| T | W | L | L | L | Cut Length | L | Cut Length | L | Cut Length | L | Cut Length | |||||||||
| 12 | 40 | 16 | 40 | 45 | 100 | - | 50 | 29 | 10 | 75 | 330 | 330 | 355 | 381 | 355 | 455 | 410 | 530 | - | - |
| 16 | 50 | 19 | 40 | 55 | 100 | - | 65 | 35 | 12 | 90 | 400 | 400 | 355 | 388 | 355 | 455 | 420 | 595 | - | - |
| 20 | 60 | 22 | 50 | 70 | 150 | 50 | 75 | 39 | 12 | 90 | 480 | 480 | 405 | 443 | 405 | 485 | 485 | 695 | 355 | 565 |
| 22 | 70 | 25 | 50 | 75 | 150 | 55 | 80 | 48 | 16 | 100 | 570 | 570 | 460 | 506 | 460 | 545 | 545 | 790 | 415 | 660 |
| 24 | 85 | 28 | 55 | 90 | 200 | 65 | 90 | 55 | 20 | 100 | 700 | 700 | 510 | 560 | 510 | 610 | 610 | 890 | 475 | 735 |
| 27 | - | - | 75 | 100 | 200 | 75 | - | - | - | - | - | - | 560 | 619 | 560 | 675 | 673 | 990 | 535 | 935 |
| 30 | 100 | 36 | 75 | 115 | 200 | 85 | 110 | 64 | 20 | 125 | 820 | 820 | 610 | 674 | 610 | 735 | 735 | 1035 | 596 | 945 |
| 33 | - | - | 90 | 125 | 200 | 90 | - | - | - | - | - | - | - | - | 660 | 800 | 800 | 1125 | 655 | 1140 |
| 36 | 115 | 42 | 90 | 125 | 200 | 95 | 115 | 76 | 25 | 150 | 1010 | 1010 | - | - | 710 | 865 | 865 | 1290 | 715 | 1130 |
| 39 | - | - | 100 | 145 | 200 | 110 | - | - | - | - | - | - | - | - | 760 | 925 | 925 | 1360 | 770 | 1225 |
| 42 | 130 | 49 | 115 | 150 | 255 | 120 | 130 | 85 | 25 | 175 | 1120 | 1120 | - | - | 815 | 990 | 990 | 1475 | 830 | 1315 |
| 48 | 150 | 56 | 125 | 180 | 255 | 125 | - | - | - | - | - | - | - | - | 915 | 1120 | 1120 | 1675 | 956 | 1510 |
| 56 | 170 | 63 | 140 | 200 | 255 | 145 | - | - | - | - | - | - | - | - | 1015 | 1270 | 1245 | 1870 | 1070 | 1695 |
| 64 | 190 | 70 | 160 | 220 | 255 | 160 | - | - | - | - | - | - | - | - | 1120 | 1375 | 1370 | 2070 | 1190 | 1910 |
Foundation Bolt Applications:
- Foundation anchoring for buildings and structures
- Securing heavy machinery and equipment to concrete floors
- Connecting steel columns and beams to concrete foundations
- Bridges and infrastructure projects
- Telecommunication and utility pole installations
- Wind turbine and solar panel mounting
- Oil and gas industry installations, including pipelines
- Marine and offshore constructions
- Power plants and energy facilities
- Highway sign and traffic signal foundations
