Hex Bolt
Hex Bolts are standard fastening components characterized by their six-sided head, which allows for secure tightening with a wrench or socket. They are widely used in various industries including construction, automotive, and machinery due to their durability and strength. The hexagonal shape provides a greater surface area for applying torque, ensuring a tight and reliable connection.
These bolts are available in various materials and sizes to accommodate different load requirements and environmental conditions.
- Standard six-sided head for secure fastening
- Suitable for a wide range of applications
- Available in multiple materials and sizes
- Provides strong and reliable connections
- Easy to install with standard tools
Hex Bolt Specification Table
| Specification | Description |
|---|---|
| ASME B18.2.1 | Dimensional specifications for hex bolts |
| ASTM A307 | Specification for carbon steel bolts and studs, 60,000 psi tensile strength |
| ASTM A325 | Specification for high-strength bolts for structural steel joints |
| ASTM A490 | Specification for heat-treated steel structural bolts, 150,000 psi tensile strength |
| ASTM F3125 | Specification for high-strength structural bolts, steel and alloy steel, heat treated |
| SAE J429 | Specification for mechanical and performance requirements for externally threaded fasteners |
Hex Bolt Specifications
- Material Grades: Carbon Steel, Alloy Steel, Stainless Steel
- Size Range: From 1/4" to 6" in diameter, with various lengths available
- Thread Types: Available in coarse and fine threads
- Strength Ratings: Designed for specific load capacities, with detailed ratings provided
- Standards and Specifications: ASTM A307, ASTM A325, ISO 4014
- Finish Options: Includes options such as galvanized, black oxide, and plain steel

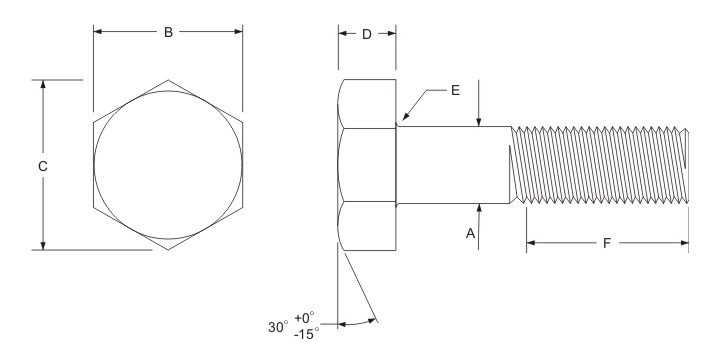

Hex Bolt Dimensions
| Bolt Size | A (max) | B | C (min) | D | E (max) | E (min) | F (6" and shorter) | F (over 6") |
|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.260 | 7/16 | 0.484 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.552 | 7/32 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.620 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.687 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.826 | 11/32 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.033 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.240 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.447 | 37/64 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.653 | 43/64 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 1.860 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.066 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-1/2" | 1.531 | 2-1/4 | 2.480 | 1 | 0.13 | 0.04 | 3.250 | 3.500 |
| 1-3/4" | 1.784 | 2-5/8 | 2.894 | 1-5/32 | 0.13 | 0.04 | 3.750 | 4.000 |
| 2" | 2.037 | 3 | 3.308 | 1-11/32 | 0.13 | 0.04 | 4.250 | 4.500 |
Hex Bolt Applications :
- Construction and building projects
- Mechanical and structural assemblies
- Automotive and machinery components
- Furniture and home improvement projects
- Bridges and infrastructure
- Oil and gas pipelines
- Marine and offshore installations
- Electrical and electronic assemblies
- Heavy equipment and industrial machinery
