HV washers are high-strength washers designed to distribute loads and protect surfaces in bolted connections. They are specifically engineered for use in high-tension applications, often paired with HV bolts and nuts to ensure secure and reliable joints.

  • High-strength design suitable for structural applications
  • Used to distribute load and protect the surfaces of bolted joints
  • Commonly used in construction, bridges, and steel structures
  • Manufactured according to standards such as EN 14399-6
  • Available in various materials like steel and stainless steel
  • Provides a robust and reliable connection for high-load applications

HV Washers Specification Table:

SpecificationDetails
TypeHV Washer
MaterialHigh-strength steel, Stainless steel
StandardEN 14399-6
Size RangeM12 to M36
Hardness200-300 HV (Vickers Hardness Scale)
Surface FinishPlain, Zinc-plated, Hot-dip galvanized
ApplicationStructural connections, bridges, steel constructions
Temperature Range-20°C to 100°C (-4°F to 212°F)
Corrosion ResistanceHigh, depending on coating
Tensile StrengthMin. 1,000 MPa

HV Washers Material Grade Table:

MaterialGradeCharacteristics
High-Strength Steel10.9High tensile strength, suitable for structural applications
High-Strength Steel12.9Very high tensile strength, used in heavy-duty applications
Stainless Steel304Corrosion-resistant, suitable for use in mildly corrosive environments
Stainless Steel316Excellent corrosion resistance, ideal for marine and chemical environments
Alloy Steel4140Good strength and toughness, used for high-stress applications
Phosphor BronzeC51000Good spring properties and corrosion resistance

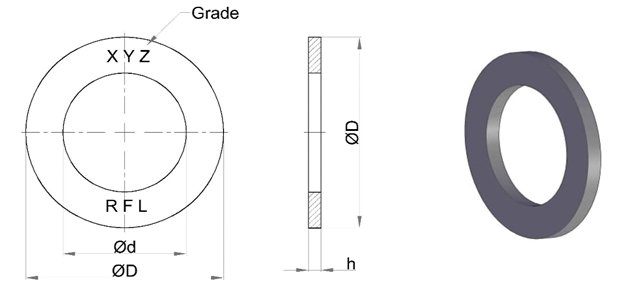

HV Washers Dimensions Chart:

All dimensions are in millimetres.


S. No.

Size

Outside diameter (D)

Inside Diameter (d)

Thickness (h)



Weight

Min.

Max.

Min.

Max.

Min.

Max.

Kg/1000

1

M-16

29.48

30

17

17.27

2.7

3.3

11.3

2

M-18

33.38

34

19

19.33

2.7

3.3

14.7

3

M-20

36.38

37

21

21.33

2.7

3.3

17.16

4

M-22

38.38

39

23

23.33

2.7

3.3

18.35

5

M-24

43.38

44

25

25.33

3.7

4.3

32.33

6

M-27

49.38

50

28

28.33

3.7

4.3

42.33

7

M30

55.26

56

31

31.39

3.7

4.3

53.64

8

M-33

58.8

60

34

34.62

4.4

5.6

75.34

9

M-36

64.8

66

37

37.62

4.4

5.6

92.08

10

M-39

70.8

72

42

42.62

5.4

6.6

126.51

11

M-42

76.8

78

45

45.62

7

9

200.2

12

M-45

83.6

85

48

48.62

7

9

242.71

13

M-48

90.6

92

52

52.74

7

9

284.09

14

M-52

96.6

98

56

56.74

7

9

319.01

15

M-56

103.6

105

62

62.74

9

11

442.72

16

M-60

108.6

110

66

66.74

9

11

477.43

17

M-64

113.6

115

70

70.74

9

11

513.25


Spring Washer Applications:

Spring washers are essential in many mechanical and fastening applications. They are designed to provide a constant spring force that helps maintain the tension in the fastener assembly, preventing loosening and compensating for vibrations or thermal expansions. Their unique shape and properties make them valuable in applications where secure and reliable fastening is crucial.

  • Maintaining tension and preventing loosening of fasteners
  • Compensating for vibrations and dynamic loads
  • Absorbing thermal expansion and contraction
  • Providing a reliable connection in high-stress environments
  • Enhancing the longevity and stability of assemblies
  • Commonly used in automotive, aerospace, and machinery applications
