Hastelloy C22 Full Couplings, Manufacturer of ASTM B564 Alloy C22 Cross, High Quality Hastelloy C22 Forged Fittings, Ready Stock Of Nickel Alloy C22 Forged Steel Fittings, C22 Hastelloy High Pressure Forged Fittings Supplier

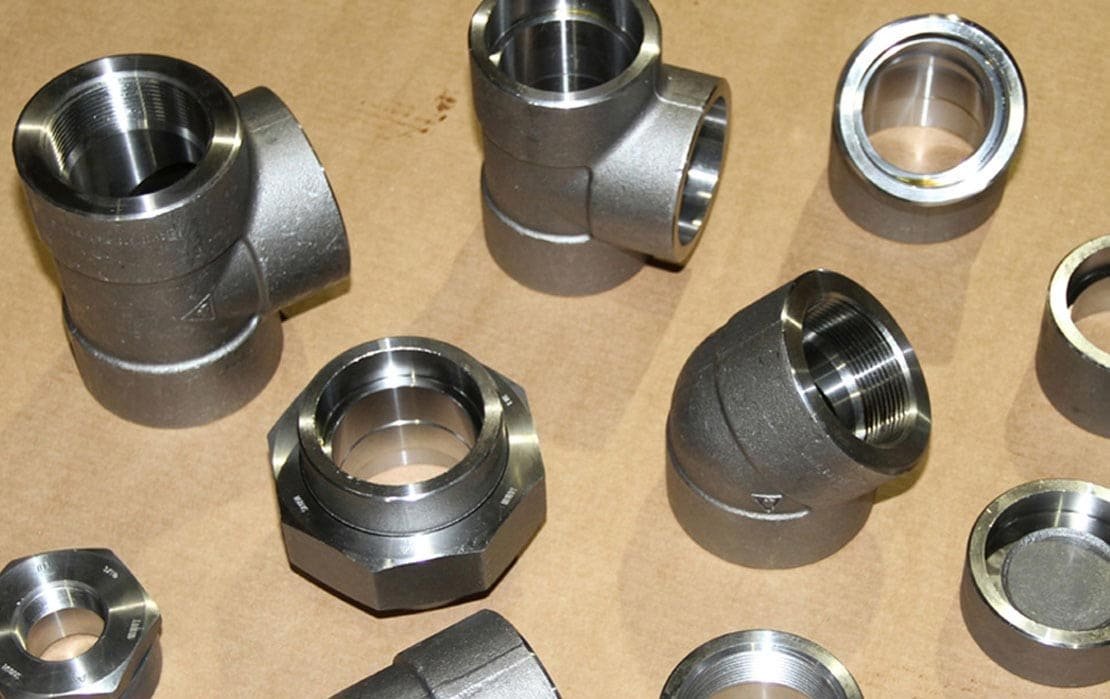

Hariom Steel is a supplier of Hastelloy Alloy C22 Forged Fittings, which can be used to determine resistance to corrosive media. Hastelloy UNS N06022 Socket Weld Elbows Fittings outperform other high-temperature alloys in terms of strength, carburization resistance, oxidation resistance, and oxidising sulphur resistance, while being the greatest in terms of thermal shock resistance. Furnace atmospheres and lubricants used in the forging of super-alloys, as these highly alloyed metals are termed, should be sulphur-free. They provide strong anti-creep rupture strength in a working environment of 700°C or above. It offers great carburization resistance and excellent oxidation resistance up to 1093 degrees Celsius. They have a wide range of industrial uses, including nuclear engineering and food processing.
Hastelloy C22 Forged Fittings Specifications
| Standards | ASTM B564 / ASME SB564 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End - 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
Hastelloy C22 Threaded Forged Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | V |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 0.02 max | 20 – 22.5 | 12.5 – 14.5 | Bal | 0.35 max |
C22 Hastelloy Alloy Forged Socket Weld Fittings Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Melting Point |
| Hastelloy C22 | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % | 1399 °C (2550 °F) |
Hastelloy Alloy C22 Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
Applications:
