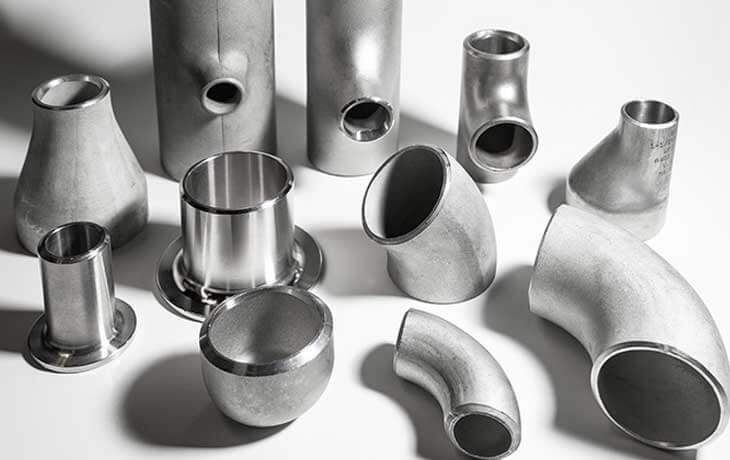

Monel 400 Elbow, Ready Stock Of Alloy K500 Pipe Fittings, Manufacturer of ASTM B366 Monel Alloy 400 Pipe Elbow, K500 Monel LR Elbow, Nickel Alloyl 400 Buttweld Fittings Supplier

Monel UNS N04400 Cross Pipe Fittings is used in industrial furnaces, heat-treating machinery, pharmaceutical and petrochemical processing, power station super-heaters and re-heaters, pressure containers, heat exchangers, and other applications. Fine-grain material should be considered for the beginning stock if the material is to be deformed more than 20% and a final anneal is required for this product. Monel WNR 2.4360 Stub End Pipe Fittings has good tensile strength, oxidation resistance, and carburzation characteristics, with recrystallization annealing accomplished at temps ranging from 2100 to 2200 degrees Fahrenheit. This steel is used in hydrocarbon refining for heat exchangers that cool the process stream with air.

Monel Alloy 400/K500 Pipe Fittings Specifications

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48"
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Types	Seamless / ERW / Welded / Fabricated
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc

Monel Alloy 400/K500 Butt weld Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

400/K500 Monel Pipe Fittings Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %
8.8 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %

Monel Alloy 400/K500 Pipe Fittings Thickness Chart

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
DN	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Applications:

Refineries90%

Oil and Gas Industry96%

Power Generation80%

Pharmaceutical Equipment85%

Pulp & Paper Industry88%
