45-Degree Elbow
The 45-degree forged elbow is a crucial component in piping systems, designed to provide a smooth transition between two pipes at a 45-degree angle. Engineered for durability and reliability, this elbow is commonly used in various industrial applications, including oil and gas, chemical processing, and construction.
Manufactured from high-quality forged steel, the 45-degree elbow ensures exceptional strength and resistance to high pressures and extreme temperatures. It adheres to rigorous international standards, such as ASTM, ASME, and DIN, guaranteeing superior performance and longevity.
Material Grades :
| Material Type | Grades |
|---|---|
| Carbon Steel | ASTM A 105/A694/ A350 LF3/A350 LF2 - F42, F46, F52, F56, F60, F65 |
| Stainless Steel | ASTM A 182 - F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316Ti, 316H, 316L, 321, 321H, 347, 347H, 904L |
| Duplex & Super Duplex | ASTM / ASME A/SA 182 - F44, F45, F51, F53, F55, F60, F61 |
| Nickel | 200, 201 |
| Monel | 400 |
| Inconel | 600, 601, 625, 800, 825 |
| Hastelloy | C-276 |
45-Degree Elbow Specifications:
| Specification | Details |
|---|---|
| Material | Forged Steel (e.g., ASTM A105, A350 LF2, A182 F11, F22) |
| Type | 45-Degree Elbow |
| Temperature Range | -29°C to 538°C (-20°F to 1000°F) |
| Pressure Rating | Class 3000, 6000, 9000 |
| Standards | ASTM A234, ASME B16.11, ASME B16.5 |
| Sizes | 1/2" to 24" |
| Applications | Oil & Gas, Chemical Processing, Petrochemical, Construction, High-Pressure Systems |
| Production Technique | Forging |

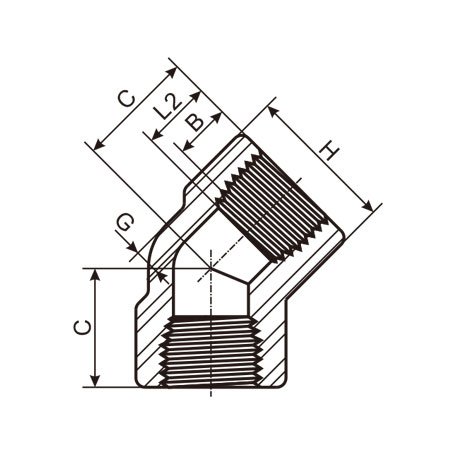

Dimension Chart :
| DN | Nom. Pipe Size | Center to End Elbow, Tee, Cross A | Center to End 45° Elbow C | Outside Diameter Of Band H | Minimum Wall Thickness G | Length Of Thread Min. (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8" | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4" | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8" | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2" | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4" | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1" | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4" | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2" | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2" | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2" | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 80 | 3" | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4" | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
Applications of 45-Degree Elbows:
45-degree elbows are essential in various applications due to their ability to change flow direction and provide flexibility in piping systems. Key areas of application include:
- Automotive Industry: For engine components, fuel systems, and exhaust systems, where flexibility and resistance to heat and chemicals are essential.
- Chemical Processing: In pipelines, valves, and reactors to handle various chemicals and moderate pressures effectively.
- Food and Beverage Industry: In processing equipment for non-stick and hygienic sealing, ensuring safety and cleanliness.
- Pharmaceutical Industry: To provide sterile sealing in pharmaceutical equipment and reactors.
- High-Temperature Applications: For environments requiring durable sealing under extreme temperatures and pressures.
- Industrial Machinery: In pumps, compressors, and general machinery where flexible and reliable seals are needed.
