Bushing
The forged fitting bushing is an essential component in piping systems, designed to connect pipes of different sizes by reducing the size of a larger fitting. Engineered for durability and reliability, this bushing is commonly used in various industrial applications, including oil and gas, chemical processing, and construction.
Manufactured from high-quality forged steel, the bushing ensures exceptional strength and resistance to high pressures and extreme temperatures. It adheres to rigorous international standards, such as ASTM, ASME, and DIN, guaranteeing superior performance and longevity. The precise engineering of the forged fitting bushing ensures a secure and leak-proof connection, maintaining the integrity of the piping system under demanding conditions.
Material Grades :
| Material Type | Grades |
|---|---|
| Carbon Steel | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70 |
| Stainless Steel | ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Duplex & Super Duplex | ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Nickel | 200, 201 |
| Monel | 400 |
| Inconel | 600, 601, 625, 800, 825 |
| Hastelloy | C-276 |
Bushing Specifications:
| Specification | Details |
|---|---|
| Material | Forged Steel (e.g., ASTM A105, A350 LF2, A694 F65) |
| Type | Bushing |
| Temperature Range | -50°C to 450°C (-58°F to 842°F) (varies with material) |
| Pressure Rating | Up to 5000 psi (varies with material and design) |
| Standards | ASME, API, ASTM |
| Sizes | Customizable (varies with design and application) |
| Applications | Heavy Machinery, Automotive, Aerospace, Industrial Equipment |
| Production Technique | Forged and Machined from Solid Steel |

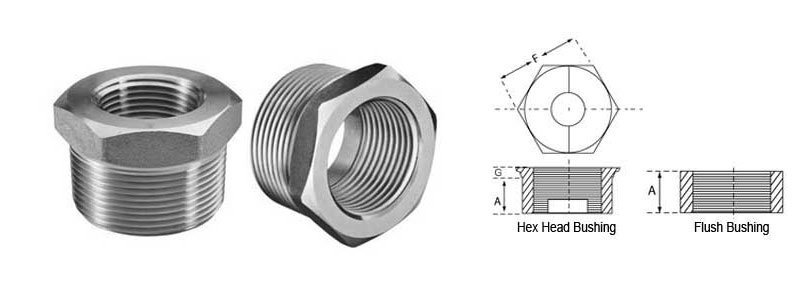

Dimension Chart :
| DIMENSIONS OF THREADED BUSHING (BS 3799) (In mm) | ||||||||
| Nominal Pipe Size | Length (Minimim) A | |||||||
| Hex Plugs & Bushings | ||||||||
| Width Flats (Nominal) F | Hex Height (Min.) | |||||||
| Bushing G | Plug H | |||||||
| 1/8” | 9.7 | 11.2 | – | 6.4 | ||||
| 1/4” | 11.2 | 15.7 | 3.0 | 6.4 | ||||
| 3/8” | 12.7 | 17.5 | 4.1 | 7.9 | ||||
| 1/2” | 14.2 | 22.4 | 4.8 | 7.9 | ||||
| 3/4” | 15.7 | 26.9 | 5.6 | 9.7 | ||||
| 1” | 19.1 | 35.1 | 6.4 | 9.7 | ||||
| 1-1/4” | 20.6 | 44.5 | 7.1 | 14.2 | ||||
| 1-1/2” | 20.6 | 50.8 | 7.9 | 15.7 | ||||
| 2” | 22.4 | 63.5 | 8.6 | 17.5 | ||||
| 2-2/2” | 26.9 | 76.2 | 9.7 | 19.1 | ||||
| 3” | 28.4 | 88.9 | 10.4 | 20.6 | ||||
| 4” | 31.8 | 117.3 | 12.7 | 25.4 | ||||
Applications of Forged Fitting Bushings:
Forged fitting bushings are crucial in various applications due to their ability to connect pipes of different sizes, reducing the size of a larger fitting and ensuring a secure and leak-proof connection. Key areas of application include:
- Oil and Gas Industry: Used to connect pipelines of varying sizes, ensuring secure and reliable connections under high pressure and harsh conditions.
- Chemical Processing: In pipelines, reactors, and storage tanks to handle corrosive chemicals and maintain system integrity by providing a reliable connection.
- Water Treatment: Employed in filtration and distribution systems to connect pipes of different sizes, ensuring leak-free and efficient operation.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems to connect various pipes and components, ensuring efficient and flexible system configurations.
- Food and Beverage Industry: In processing and packaging equipment where hygiene and safety are critical, providing secure connections for various pipe sizes.
- Pharmaceutical Industry: Utilized in sterile processing systems to connect equipment and piping of different sizes, ensuring contaminant-free and leak-proof connections.
- Fire Protection Systems: Installed in sprinkler and fire suppression systems to connect different pipe sizes, ensuring reliable and efficient performance in emergency situations.
- Industrial Machinery: In pumps, compressors, and other machinery where flexible and reliable connections are needed to accommodate different pipe sizes.
